High Power LED Streetlights
Cat. No. LLI SL
Weight 10 lbs | |
Revolutionary Photometric
Design-The
world’s first dedicated optical system (rectangular beam focusing lens)
:
Optical system provides reasonable control of light distribution, spot
rectangular
beanpattern, ideal uniformity of brightness on surfaces, eliminated
glare
and high effi ciency, no light pollution; Unique Integrated Lens and
Lampshade Design: Lightweight, simplifi ed design; array lens focuses
light direction
and reduces the loss of light;
Long Life : Up to 50,000 Hours, adopted the PWM constant
current
power, protect the LEDs effi ciently
Robust Design : shock and
vibration
resistant
Light Beam : Low heat
generated/No
UV, adopted the integrative lamp cup & radiator, scatter heat
quickly
Easy Installation : With the
adjustable
hoop, which can easy to install on any kind of lamp pole
Save Money : Reduces labor and
maintenance
costs
High Efficiency : Power Factory
>
90%, THD < 9
LLI
SP90 E40 RETROFIT HIGH POWER LED STREETLIGHT
Low Power Consumption : 28W
High Brightness : Up to 2,100 Lumens, 8 TIMES than the incandescent
lamps
|
|
LLI
LU2 HIGH POWER LED STREETLIGHT
Low Power Consumption : 56W
High Brightness : Up to 4,200 Lumens, 8 TIMES than the incandescent
lamps |
|
LLI
LU4 HIGH POWER LED STREETLIGHT
Low Power Consumption : 112W
High Brightness : Up to 8,400 Lumens, 8 TIMES than the traditional lamps |
|
LLI
LU6 HIGH POWER LED STREETLIGHT
Low Power Consumption : 168 W
High Brightness : Up to 12,600 Lumens, 8 TIMES than the traditional
lamps
|
|

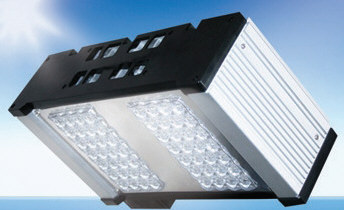

LLI
SD2 HIGH POWER LED TUNNEL LIGHT
Low Power Consumption : 56W
High Brightness : Up to 4,200 Lumens, 8 TIMES than the incandescent
lamps |
 |
Specifications
Revolutionary Photometric Design-The world’s first dedicated optical
system
(rectangular beam focusing lens) : Optical system provides reasonable
control
of light distribution, spot rectangular beanpattern, ideal uniformity
of
brightness on surfaces, eliminated glare and high effi ciency, no light
pollution;
Unique Integrated Lens and Lampshade Design: Lightweight, simplifi ed
design;
array lens focuses light direction and reduces the loss of light;
Radiator and Lamp Holder Integration:
Increased LED life and heat dissipation;
SP90 - Standard E40, 360° Rotation Lamp Holder: Can rotate fully
after
tightening, easily adjusted to ensure best direction Direct Replacment
Light
Source Design: Replace existing lamps without changing original shell
No Adverse Glare: Eliminated
glare
normally caused by ordinary lights; improve driving safety;
No light Pollution: Strictly
controlled
light distribution;
No High-Voltage Dust Absorption:
LED does not absorb high-voltage dust; no resulting brightness
reduction;
Lampshade retains brightness;
No High-Temperature, Aging Yellow
Lampshade:
Increased life expectancy and brightness - LED will not bake and turn
yellow
as in typical lights;
Wide Working Voltage: Not
affected
by voltage fluctuations; For the traditional light source such as the
High
Pressure Sodium, if the voltage fluctuation ±7%, the brightness
and
lifetime will be reduced very fast. BBE LED, even the voltage
fluctuation
is ±20%, the brightness and lifetime will not be influenced at
all;
No Delayed Start: Lights reach
optimimum
brightness immediately; eliminated long start process of traditional
tunnel
lights;
No Strobe Flashing: Eliminated
visual
fatigue, caused by strobe lights of traditional tunnel lamps;
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared
(IR)
Radiation: No filament and glass frames, safer handling;
High Color Index, Nice Coloration: Improved color tint; Multiple Color
Temperature
Options : Color temperature settings (warm, cool, etc) to best refl ect
surroundings
and mood;
Tremendous Energy Savings: Energy savings of 50-80% over conventional
sodium
and mercury lamps (with use of ultra high power high brightness LED
light
source and high power efficiency power supply)
Long Life, Up to 50,000 Hours: (10 hours a day, more than 13 years),
5-10
times longer working life than a traditional sodium or mercury lamp;
Green and Environmental Protection: No lead, no mercury, no
environmental
pollution; Universal Input Voltage : 85-264v AC full voltage range
constant,
constant-current PWM technology, high effi ciency, low-heat,
high-precision
constant current;
No Pollution to Power Network: Power factor >0.9, THD< 20%, No
contamination
or interference with high frequency power networks or lines;
Work under Low-voltage and Low-Heat, Safe and Reliable: LED junction
temperature
can be controlled under an ideal temperature (TJ<60°C Ta=25 C
ambient
temperature);
Perfect Compliment to Solar Energy: Increased cost performance and
reliability
when combined with solar energy;
High Luminous Efficiency:
Luminous
output and efficiency comparable to other lamps, with added energy
savings.
Existing luminous efficiency is ?801 m/w - with the LED brightness,
power
is further reduced without losing lighting quality.
Number of patents for inventions and utility model patents.
